IP IR CCTV Cameras
Products
Samsung IP IR Dome Camera
| Minimum Order Quantity | 10 Piece |
| Brand | Samsung |
| Camera Technology | IP Camera |
| Camera Resolution | 1.3 MP |
| Camera Type | Wired Camera |
| Special Features | Waterproof |
| Sensor | CCD |
| Type | Security Camera |
| Application | Home,Offices,Shops, Etc |
Matrix IP Dome Camera
| Camera Resolution( Pixel) | 3 MP |
| Camera Technology | IP Camera |
| Camera Vision | Day & Night Vision |
| Brand | Matrix |
| Style | Dome Camera |
| Camera Range | Up to 30 m |
| Special Features | Waterproof, Vandal-proof |
| Sensor | CMOS |
| Model No. | CIDR30FL36CWS |
| Sensor Type and Size | 1/2.8″ |
| Minimum Illumination | 0.08 lux @ F2.0 @ 1/25s,No Sens-up allowed |
| Lens Type | Fixed Iris |
| Focal Length | 3.6mm |
| HFOV | 82 Deg V |
| FOV | 59 deg D |
| Shutter Speed | 1/12500s to 1/25sSNR45dB @ 5lux |
| Lens Mount | M12 x 0.5 |
| Minimum Object Distance | 0.3m |
| Aperture | F1.2 |
| Video Compression | H.265/H.264/MJPEG |
| Audio Compression | G.726/G.711 |
| Communication Interface | 1 RJ45 10/100Mbps Ethernet Interface |
| SD Card | Up to 128GB |
| Processor and RAM | HI-3516A and 4GB |
| Power Supply | 12V/2A,Poe (802.3af) |
| Power Consumption | Less than 7W |
| Operating Temperature | 0 to 50 Degree C |
| Operating Humidity | Less than 90% |
| Dimension | Diameter-158mm,Height-134mm |
| Weight | 1400gm |
| Material | Aluminum |
Matrix caters various industries with a range of IP security Cameras (also known as network cameras) powered by Sony STARVIS sensor with Exmor technology for better Video Surveillance. Equipped with a back-illuminated sensor, these cameras provide exceptional low light performance, to the extent that they produce color images in light as low as 0.01 lux. Beside this, it comes with True WDR to deliver consistent image quality in varying light conditions, especially in outdoor environment and reception areas in offices where frequent opening of doors exposes area to high sunlight. Along with high resolution images, Matrix IP cameras decrease storage costs by offering latest H.265 Compression technology. Furthermore, Adaptive Streaming reduces the frame rate based on motion, saving up to 50% of storage space without compromising quality.
Matrix offers IP67 certified Project and Professional series IP Cameras to provide glitch-free performance even under extreme operating temperatures. These cameras are designed to provide high definition, crystal clear images and at the same time withstand harsh environmental conditions. Due to the sturdiness, our IP Cameras can be used for both indoor (Dome Cameras preferred) as well as outdoor (Bullet Cameras preferred) applications. Furthermore, the dome variant of the Camera is vandal proof, which comes with unbreakable enclosure (IK10), making it impossible for miscreants to damage it.
Advik IP IR Dome Camera
- 1/3″ 2 MP AURA HD CMOS1/3? Sony Exview HAD CCD ll
- CVI, AHD, TVI, ANALOG ALL TECHNOLOGY SUPPORT
- HIGH SPEED, LONG DISTANCE REALTIME TRANSMISSION
- AWB , AGC, BLC , DWDR, OSD
- 3.6MM FIXED LENS
- MAX. 1 ARRAY IR , IR DISTANCE 20 MTRS
| IMAGE SENSOR | 1/3″ 2 MP AURA HD CMOS |
| MIN. ILLUMINATION | Color: 0.01Lux @(F1.2,AGC ON),0 LUX with IR |
| LENS | 3.6MM FIXED LENS |
| IR DISTANCE | 20 MTRS |
| ELECTRONIC SHUTTER | AUTO (1/25S-1/100000S ADJUSTABLE) |
| DAY/NIGHT | AUTO/COLOUR/B&W (IR CUT) |
| S/N RATIO | _> 55 DB |
| NOISE REDUCTION | 2D/3D DIGITAL NOISE REDUCTION (AUTO ) |
| ANTI FOG | NO |
| WDR | DWDR |
| IMAGE ADJUSTMENT | OSD |
| RECORD RESOLUTION | 1920*1080@25FPS/30FPS |
| CVBS OUTPUT | 1 CH BNC AURA HD OUTPUT |
| PROTECTION GRADE | PLASTIC CASING , INDOOR |
| POWER | DC12V-2AMP |
| OPERATION TEMPERATURE | -20℃-60℃(14℉-122℉) |
| POWER SUPPLY | 4W |
| WEIGHT | .25KG |
| TRANSMISSION DISTANCE | 500 MTRS VIA COAXIAL CABLE |
Matrix Varifocal Dome Camera
| Sensor Type and Size | 1/2.8″ SONY – CMOS 5MP Active Pixel Progressive Scan, Back Illuminated Image sensor (EXMOR Technology – STARVIS Series) |
| Focal Length | 2.7mm-13.5mm |
| Field of View (FOV) | HFOV (degrees) 101-30° DFOV (degrees) 137-38° VFOV (degrees) 72-23° |
| IR Range | 50m |
| Camera Technology | IP Camera |
| Camera Vision | Day & Night Vision |
| Camera Resolution (mp) | 2 MP |
| Style | Dome Camera |
| Brand | Matrix |
| Camera Range | 25 to 30 m, Up to 30m |
| Special Features | Waterproof |
| Model No. | CIDR20MVL12CWP |
| Lens Type | Motorized Varifocal with P-Iris |
| Focal Length | 2.8 to 12mm |
| HFOV | 98 to 33Deg |
| VFOV | 51 to 19 Deg |
| DFOV | 116 to 38 Deg |
| Shutter Speed | 1/12500s to 1/25s |
| SNR | 49.2dB,41.2dB @ 5lux |
| Lens Mount | M14 |
| Minimum Object Distance | 0.3m |
| Aperture | F1.4 |
| IR LED type | 30 – Through-hole LEDs |
| Video Compression | H.265/H.264/MJPEG |
| Audio Compression | G.726/G.711 |
| Frame Rate | 1 – 30fps |
| Noise Filter | 2DNR and 3DNR (Auto/Manual) |
| SD Card | Up to 128 GB |
| Processor and RAM | HI-3516A & 4 GB |
| Power Supply | 12V/2A,POE (802.3af) |
| Power Consumption | Less than 7 W |
| Operating Humidity | Less than 90% RH |
| Dimension | 158 x 134mm |
| Weight | 1400gm |
| Material Type | Aluminum |

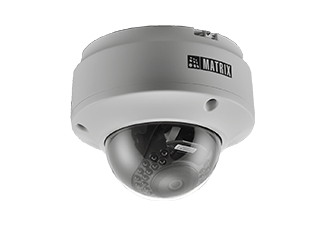

Matrix IP IR Dome Camera
Project series Dome camera has variants with different focal lengths in 5MP and 2MP resolution.
Fixed Lens: Variants include focal lengths 2.8mm, 3.6mm, 4mm and 6mm
Varifocal/ Motorized Varifocal Lens: Focal length range is 2.8mm to 12mm and 2.7mm-13.5mm
| Pixel | 1.3 MP |
| IR Range | 15 to 20 m |
| Special Features | Waterproof |
| Application | Offices,Shopping Malls |
| Model | CIDR13FL40CW |
| Minimum Order Quantity | 6 Unit |
Matrix offers best-in-class Project Series Dome IP cameras with exceptional low light performance specifically designed and built for demanding enterprise and project applications. Matrix cameras reduce the installation cost for multilocation by Camera Initiation feature that eliminates the need for static IP. In addition, these feature packed cameras offer Multiple Streams, Video Analytics and Edge Recording. Moreover, H.265 compression and automatic motion-based frame rate reduction save bandwidth and storage up to 50%. All Matrix Dome cameras are vandal proof with IK10 certification.
Hikvision Fisheye IP Camera
Project series Dome camera has variants with different focal lengths in 5MP and 2MP resolution.
Fixed Lens: Variants include focal lengths 2.8mm, 3.6mm, 4mm and 6mm
Varifocal/ Motorized Varifocal Lens: Focal length range is 2.8mm to 12mm and 2.7mm-13.5mm
| Brand | Vivotek |
| Camera Resolution | 5 MP |
| IR Range | 30 to 35 m |
| Usage/Application | Airports, Shopping Malls, Parking Lots, Retail Stores, Offices, Etc |
| Power Input | Built-in 802.3at Compliant PoE |
| Frame Rate | 30fps at 1080p FullHD |
| View Angle | 180 Deg Panoramic View and 360 Deg Surround View |
| Focal Length | 1.5 mm |
| Real-time | H.264,MPEG-4,and MJPEG Compression (Triple Codec) |
| Protection Level | IP66 |
Matrix offers best-in-class Project Series Dome IP cameras with exceptional low light performance specifically designed and built for demanding enterprise and project applications. Matrix cameras reduce the installation cost for multilocation by Camera Initiation feature that eliminates the need for static IP. In addition, these feature packed cameras offer Multiple Streams, Video Analytics and Edge Recording. Moreover, H.265 compression and automatic motion-based frame rate reduction save bandwidth and storage up to 50%. All Matrix Dome cameras are vandal proof with IK10 certification.
Hikvision Fisheye IP Camera
- Standard video compression with high compression ratio, ROI (region of interest) encoding
- IR range approx. 10 meters Lence 4mm
- Other functions: heartbeat, mirror, reset button, etc.
- Support PoE(802.3af)
- 2.8mm/4mm fixed lens ; 120dB Wide Dynamic Range ; Power Supply: 12VDC ± 25% & POE (802.3af) and Power Consumption: Max. 5W ; Up to 10m IR range ; Built in Wi-Fi and Mobile Monitoring via Hik-Connect ; Day& Night: IR cut filter with auto switch.
| Camera Resolution | 2 MP |
| Brand | Hikvision |
| Model Name/Number | DS-2CD242F-I |
| Usage/Application | Indoor Use |
| Camera Technology | IP Camera |
| Vision Type | Day & Night |
| Style | Cube Camera |
| Features | WiFi Camera |
| IR Range | 15 to 20 m |
| Sensor | CCD |
| Lens Size | 2.8mm/4mm fixed lens |
| Model Name | HD Series |
| Item Weight | 458 g |
| Product Dimensions | 72.3 x 89.9 x 131.3 cm |
| Item model number | DS-2CD242F-I(Audio) |
| Additional Features | Primary Camera |
| Included Components | Hivision DS-2CD242F-I(Audio) 2MP IR Cube IP Camera |
| Number Of Items | 1 |
| Wattage | 5 Watts |
| Batteries Included | No |
| Batteries Required | No |
| Connector Type | Wireless |
Matrix IP IR Bullet Camera
Matrix 3MP CIBR30FL60CWS IP Bullet Camera, equipped with Sony’s EXMOR technology sensor, are designed to provide crystal clear images with exceptional low light performance. It comes with True WDR to provide consistent image quality under varying light conditions.
| Camera Resolution (mp) | 3 MP |
| Camera Style | Bullet Camera |
| Vision type | Day&Night |
| Camera Vision | Day & Night Vision |
| Camera Technology | IP Camera |
| Brand | Hikvision, Panasonic, Matrix |
| Style | Bullet Camera |
| Camera Range | 25 to 30 m |
| Special Features | Waterproof, Vandal-proof |
| IR Range | Up to 30m |
| Lens Size (mm) | 6mm |
| Sensor | CMOS |
| Power Supply | 12V/2A,Poe (802.3af) |
| Model No. | CIBR30FL60CWS |
| IP Rating | IP66 |
| Communication Interface | 1 RJ45 10/100Mbps Ethernet Interface |
| Dimensions | 320 X 84.5 X 92.5mm |
| Weight | 920gm |
| Application | Indoor and Outdoor |
| Material | Aluminum |
| Operating Humidity | Less than 90% RH Certifications CE,IP66,FCC Part-15 Class-B |
| Power Consumption | Less than 7W |
| Sensor Type and Size | 1/2.8″ |
| Minimum Illumination | 0.08 lux @ F2.0 @ 1/25s,No Sens-up allowed |
| Lens Type | Fixed Iris |
| HFOV | 52 Deg |
| VFOV | 38 Deg |
| DFOV | 66 Deg |
| Shutter Speed | 1/12500s to 1/25sSNR45dB @ 5lux |
| Lens Mount | M12 x 0.5 |
| Minimum Object Distance | 0.3m |
| Aperture | F1.2 |
| SD Card | Up to 128GB |
| Processor and RAM | HI-3516A & 4GB |

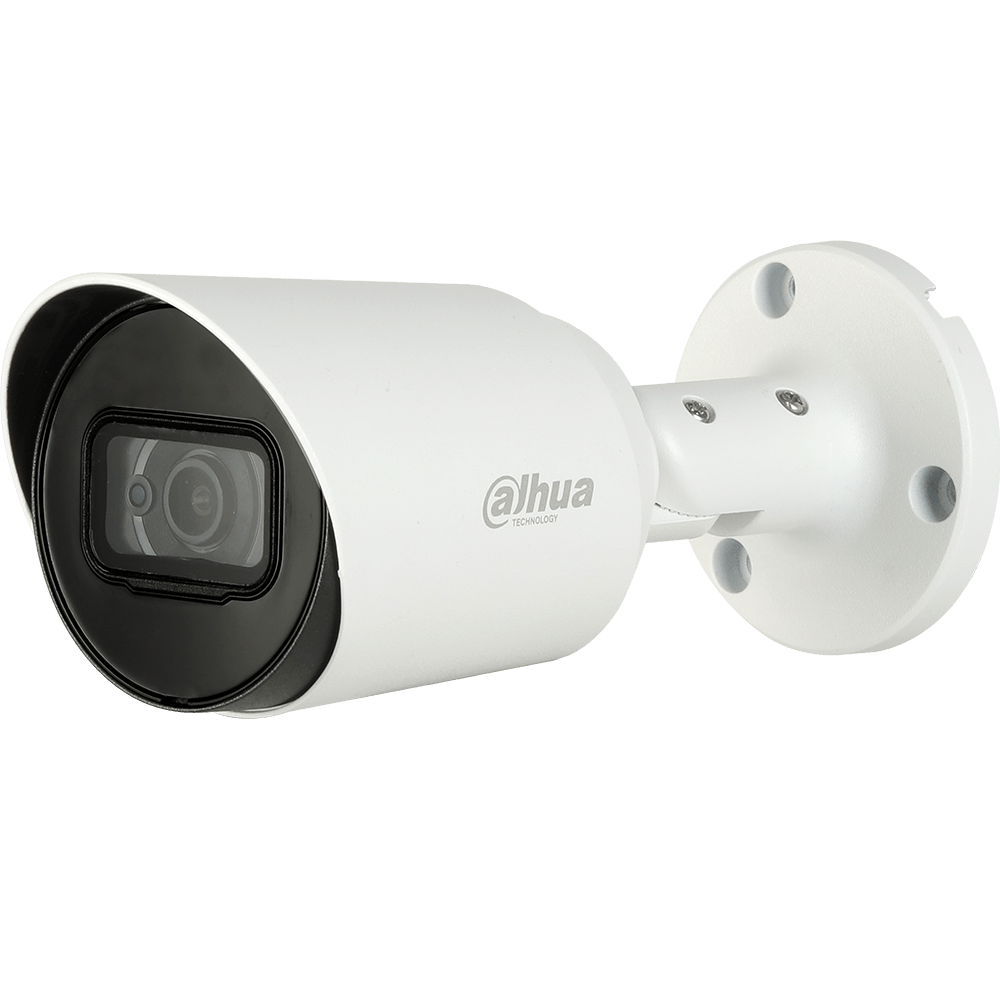

Dahua IP IR Bullet Camera
- We are one of the most well-distinguished companies in the market that is into offering Dahua 2 MP IP IR Bullet Camera.
| Minimum Order Quantity | 1 Piece |
| Pixel | 2 MP |
| Brand | Dahua |
| Camera Range | 15 to 20 m |
| Special Features | Waterproof |
| Vision type | Day & Night |
| Application | Offices,Shopping Malls or anywhere as pre required both indoor and outdoor. |
| Color | White |
Matrix 1.3 MP IP IR Bullet Camera
Overview Matrix 1.3MP IP cameras come in IR Bullet and IR Dome These Cameras provide higher image quality along with various features like Inbuilt Video Analytics, NAS Support, Dual Streams etc. which fulfill varied indoor and outdoor purposes of multiple location enterprises, manufacturing units, hospitality Industry where higher security is essential.
| Usage/Application | ATMs, Mall Entrances, Porch Doors, Etc |
| Camera Technology | IP Camera |
| Camera Range | 15 to 20 m |
| Pixel | 1.3 MP |
| Brand | Matrix |
Automatic White Balance: Adjusts the color according to the lighting conditions available. Provides as natural image as possible as possible.
Backlight Compensation: BLC allows the camera to adjust the exposure of the entire image. ATMs, Mall Entrances, Porch Doors usually can benefit from this feature.
Digital Noise Reduction: DNR is a technique of removing image noise from a video signal. It makes images clear and reduces video file size.
Inbuilt Video Analytics: Intrusion Detection and Trip Wire. Prompt identification of undesired events in selected areas.
Dual Stream Support: Different streams for viewing, recording and remote monitoring. Best utilization of allotted bandwidth.
International Protection Rating: Provides protection from water and dust. Camera can be impervious to any kind of damage.
